Import Automated Test Results from Pipelines

Disclaimer

On SquashTM Cloud instances, this feature is available with a SquashTM Ultimate license.

SquashTM allows you to import the results of automated tests executed in a CI/CD pipeline.

This is done via an API call (see details), which will create a new automated test suite linked to the targeted iteration.

Prerequisites

In order to import test results, an iteration must already exist in SquashTM and its execution plan must be populated with the tests for which results will be imported.

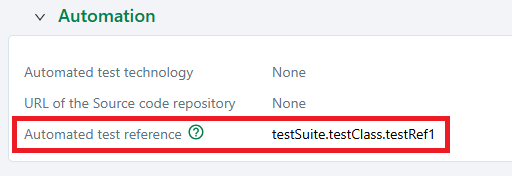

Each of these tests must have a unique (in the iteration's execution plan) automated test reference.

All of these steps can be done via the API if needed:

• Create test cases: POST request to /test-cases with the automated_test_reference field filled;
• Create a campaign: POST request to /campaigns;
• Create an iteration: POST request to /campaigns/{campaign_id}/iterations;
• Add tests to an iteration: POST request to /iterations/{iteration_id}/test-plan.

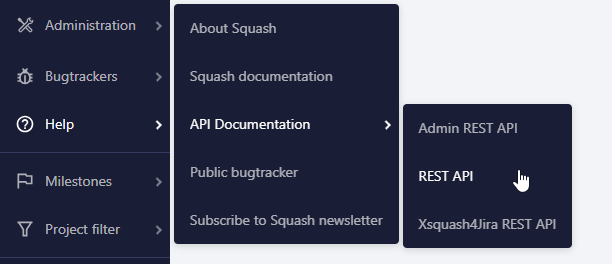

For more details on these requests, refer to the API documentation available in SquashTM.

Mapping Information

Results will be reintegrated into SquashTM by matching the automated test reference provided in the API request with that of the test in the execution plan of the selected iteration.

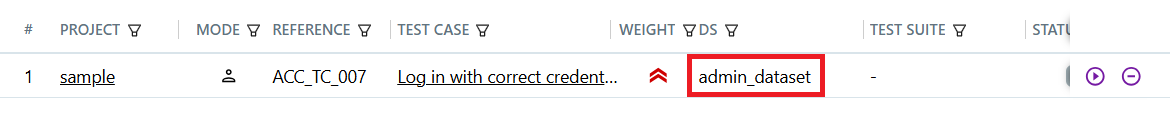

If some test cases use datasets, mapping will rely on both the automated test reference and the dataset name associated with the ITPI.

The following information can be reported:

• the test status;
• the execution duration of the test;
• the messages of failed assertions;
• the attachments related to test executions;
• the custom fields related to test executions.

It is also possible to add attachments at the test suite level.
The test suite status will be automatically calculated based on the individual test results, but can also be overridden if needed.

API Endpoint Documentation

POST /import/results/{iteration_id}

🔸 Path Parameter

Name	Type	Required	Description
iteration_id	integer	✅ Yes	ID of the iteration. Must be greater than or equal to 1.

🔸 Request Body

Note: There are two types of required fields:
- 🔴 : Fields that block the import if they are missing.
- 🟡 : Fields that will result in their current object being rejected if they are invalid or missing, but not blocking the rest of the import.

Content-Type: application/json
Authentication: Bearer token

Field	Type	Required	Description
┌─ automated_test_suite	object	No	Info about the test suite execution.
│    ├─ status	string	No	Test suite status: BLOCKED, CANCELLED, SUCCESS, RUNNING, SKIPPED or FAILURE. If not provided, it will be auto-calculated.
│    └─ attachments	array of objects	No	Files attached to the suite.
│          ├─ name	string	🟡 Yes	File name with its extension, among txt, html, xml or doc (e.g., report.html).
│          └─ content	string	🟡 Yes	Base64-encoded content, with a maximum size defined by the SquashTM instance.
└─ tests	array of objects	🔴 Yes	Individual test results.
├─ reference	string	🔴 Yes	Unique test identifier (used to map with SquashTM). Example: testSuite.testClass.testRef1
├─ dataset_name	string	No	Dataset name used in SquashTM.
├─ status	string	🔴 Yes	Test status: BLOCKED, CANCELLED, SUCCESS, RUNNING, SKIPPED, FAILURE, or READY.
├─ duration	integer	No	Test duration in milliseconds.
├─ failure_details	array of strings	No	List of failure messages.
├─ attachments	array of objects	No	Files related to the test.
│    ├─ name	string	🟡 Yes	File name with its extension, among those accepted by the SquashTM instance (e.g., screenshot.png, if png has been added at the system level).
│    └─ content	string	🟡 Yes	Base64-encoded content, with a maximum size defined by the SquashTM instance.
├─ test_steps	array of objects	No	Details of individual test steps. The number of these steps must be equal to the number of test steps in the corresponding test case.
│    ├─ status	string	🟡 Yes	Test step status: BLOCKED, CANCELLED, SUCCESS, RUNNING, SKIPPED, FAILURE, or READY.
│    └─ attachments	array of objects	No	Files related to the test step.
│          ├─ name	string	🟡 Yes	File name with its extension, among those accepted by the SquashTM instance (e.g., screenshot.png, if png has been added at the system level).
│          └─ content	string	🟡 Yes	Base64-encoded content, with a maximum size defined by the SquashTM instance.
└─ custom_fields	array of objects	No	Custom fields related to the test.
├─ code	string	🟡 Yes	Code of the custom field as defined in SquashTM.
└─ value	string / integer / boolean / array of strings	🟡 Yes	Value of the custom field. The type depends on the configuration of the field in SquashTM.

Example:

{
  "automated_test_suite": {
    "attachments": [
      {
        "name": "report.html",
        "content": "Base64-encoded content here..."
      }
    ]
  },
  "tests": [
    {
      "reference": "testSuite.testClass.testRef1",
      "dataset_name": "admin_dataset",
      "status": "FAILURE",
      "duration": 35000,
      "failure_details": ["1 is not equal to 2"],
      "attachments": [
        {
          "name": "screenshot.png",
          "content": "Base64-encoded content here..."
        }
      ],
      "test_steps": [
        {
            "status": "SUCCESS"
        },
        {
          "status": "FAILURE",
            "attachments": [
              {
                "name": "step_screenshot.png",
                "content": "Base64-encoded content here..."
              }
            ]
        }
      ],
      "custom_fields" : [ {
        "code" : "NUMERIC",
        "value" : 200
      }, {
        "code" : "TEXT",
        "value" : "description"
      }, {
        "code" : "CHECKBOX",
        "value" : "true"
      }, {
        "code" : "TAGS_RELATED",
        "value" : ["tag1", "tag2"]
      } ]
    }
  ]
}

🔸 Responses

Code	Meaning	Notes
204	✅ All results successfully imported into SquashTM.
207	⚠️ Partial success – some results could not be imported.	Response body includes error details, for example: { "iteration_id": 1234, "tests": [ { "test_case_id": null, "reference": "testSuite.testClass.testRef1", "error": "No test found with this reference." } ] }
400	🛑 Bad request	Invalid input.
401	🔒 Unauthorized	Authentication required.
403	🚫 Forbidden	Access denied.
404	❓ Not found	Iteration not found.
412	🛑 Precondition failed	Request body is missing one or more required fields and the import has been aborted. Response body includes error details, for example: { "fieldValidationErrors": [ { "objectName": "post-execution-result-import", "fieldName": "tests[0].reference", "fieldValue": null, "errorMessage": "The reference attribute is required" } ] }
500	❌ Internal error	Unexpected server error.
