Configure Xsquash in Jira

Xsquash and Xsquash Cloud enhance the integration between SquashTM and Jira Data Center, and Cloud. They retrieve the test cases and executions associated with requirements synchronized with Xsquash4Jira in SquashTM, to display them directly in Jira requests.

Focus

It is imperative to use the Xsquash4Jira plugin in SquashTM to be able to use Xsquash or Xsquash Cloud on the Jira side.
To learn more about using the Xsquash4Jira plugin, visit the page Configure Xsquash4Jira in SquashTM.
An administrator must have configured the SquashTM public URL.

Learn more

The page Follow testing activity in Jira describes how test cases and executions are displayed in Jira.

Configure Xsquash on Jira Data Center

Xsquash is an additional component for Jira Data Center available on the Atlassian Marketplace.

Install Xsquash

To install Xsquash on Jira Data Center:

Log onto Jira as an administrator;
Go to the Jira administration and choose the option Manage apps. The Jira Atlassian Marketplace appears;
Search for "Xsquash" on the Marketplace;
Click on the [Install] button to download and install the plugin.

Info

By default, the last version of Xsquash compatible with the Jira version will be installed.

To install a previous version of the Xsquash plugin on Jira:

Visit the Xsquash page Version history on the Marketplace;
Download the version you want on your computer;
Log onto the Jira instance as an administrator;
Manually import the plugin by using the "Import app" feature on the "Manage apps" page.

Declare a Server in Xsquash

You can configure the Xsquash plugin from the Jira administration, in the "Manage apps" part. In the menu on the left of your screen, search for "Xsquash", then click on "Configuration". Xsquash enables you to configure multiple Xsquash4Jira servers from different SquashTM instances:

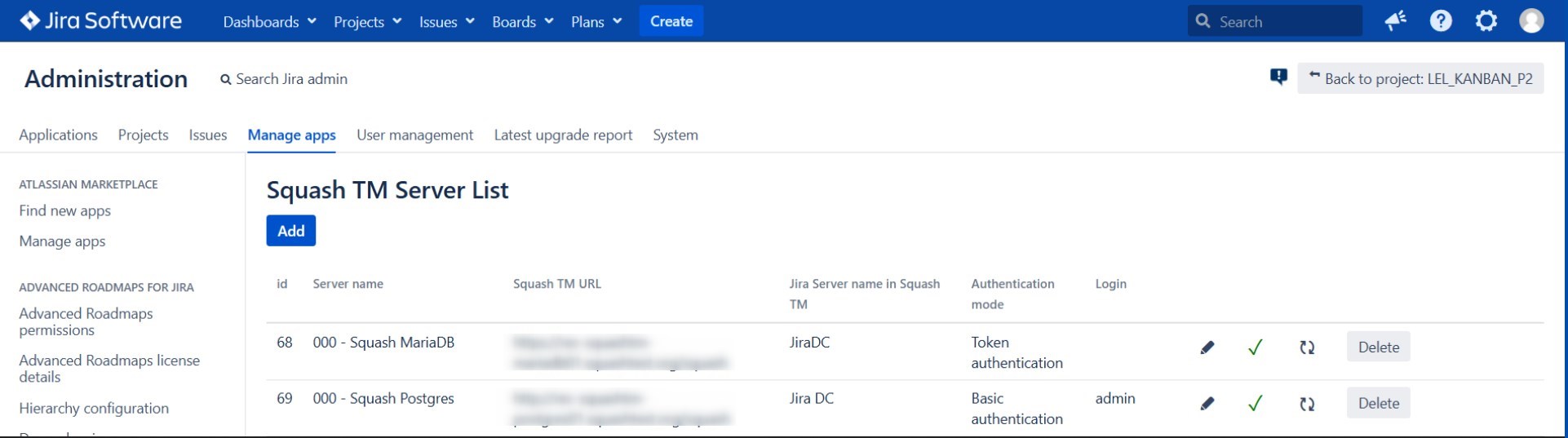

Xsquash Servers

To add a new server, click on the [Add] button and fill in the form with the following information:

Server name (unrestricted);
SquashTM's base URL (stop at /squash);
Name of the jira.xsquash server declared in SquashTM corresponding to the Jira instance (case-sensitive);
Depending on the authentication mode, login and password, or API token with read permission of a SquashTM account. This account will be used for all the API requests the plugin will send to SquashTM.

Warning

Basic authentication will no longer be available by 2026, learn more here.

Learn more

For more information about generating API tokens in SquashTM, see Personal API tokens section.

We recommend that you use a SquashTM administrator account for this configuration because this one has access to all the projects on the instance. However, you can still use a guest profile with only reading permissions for projects containing acceptance data (test cases and executions) to be synchronized in Jira.

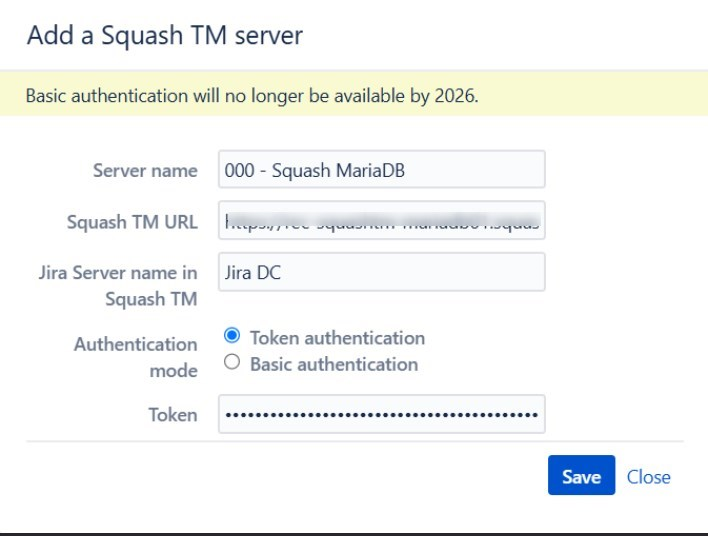

Add Server

Configure Xsquash for a Project

You must configure the Xsquash plugin independently for each Jira project.

To configure Xsquash for a project, go to [Project parameters], search for "Xsquash" in the vertical menu, then click on [Configure]. Activate Xsquash via the radio button, then select the server you want in the list.

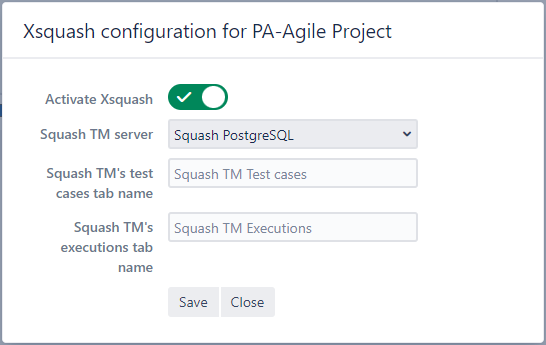

Activate Server

By default, the synchronization tabs of the SquashTM acceptance data are named SquashTM test cases and SquashTM executions. The configuration pop-up enables you to rename these tabs that appear in the Jira requests of the project. Once the configuration is done, click on [Save].

Focus

You must have administration rights for the Jira project to be able to activate the Xsquash plugin.

Configure Xsquash Cloud on Jira Cloud

Xsquash Cloud is an application hosted on an internal server of the company Henix.

Warning

Xsquash Cloud is only available for clients with a SquashTM Premium or Ultimate License.
SquashTM and Xsquash Cloud must be in compatible versions, so it is necessary to contact the SquashTM Support Team to request an update of Xsquash Cloud when SquashTM has been upgraded.

Install Xsquash Cloud

There are two ways you can install the Xsquash Cloud app on Jira Cloud:

Install Xsquash Cloud Manually

To manually install Xsquash Cloud:

Log onto the Jira Cloud instance as an administrator.
Click the [Settings] button and select [Marketplace apps];
From the Manage apps menu, click [Take me there];
From the Connected apps menu, click [Settings];
Make sure that Developer mode is set to Enabled; if not, enable it;

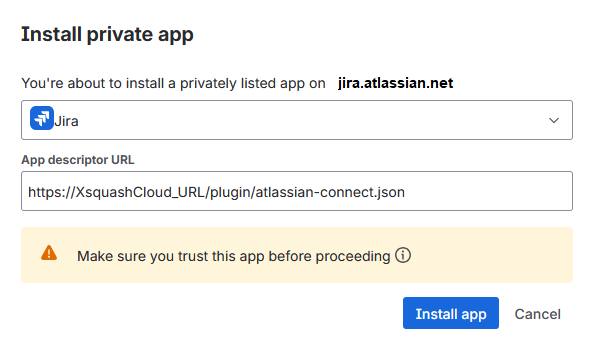

On the Installed apps page, click [Install a private app] to open the Install private app window;
In the Choose a product to install this app on field, select Jira;
In the App descriptor URL field, enter the URL provided by the SquashTM Support Team, then click the [Install app] button;

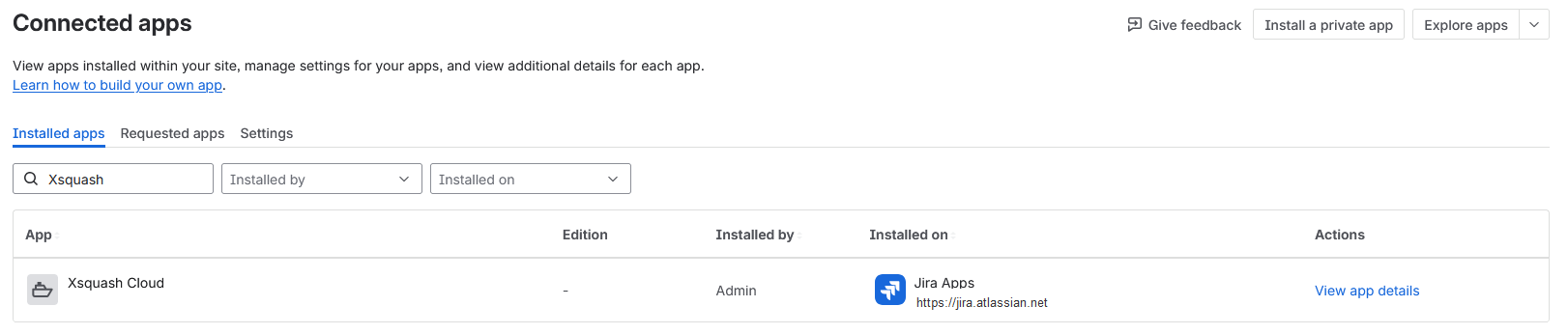

The Xsquash Cloud application then appears in the list of installed applications.

Install Xsquash Cloud via the API

Before installing the Xsquash Cloud application in Jira Cloud via API, you must have an administrator account with an API token beforehand.

Learn More

To learn how to generate an API token, please visit this page.

Here are the steps to follow to install the Xsquash Cloud app via the API:

Make a GET request with BASIC AUTH at the URL https://<JiraURL>.atlassian.net/rest/plugins/1.0/?os_authType=basic with the following information in the header:
```
Accept: application/vnd.atl.plugins.installed+json
```
and for the authentication, use the administrator's username and their API token.
Retrieve the value of the header upm-token in the response.
Make a POST request with BASIC AUTH at the URL https://<JiraURL>.atlassian.net/rest/plugins/1.0/?token=upm-token with the following information in the header:
```
Content-type: application/vnd.atl.plugins.uri+json
Accept: application/json
```
the following body with the URL provided by the SquashTM Support Team:
```
{
    "pluginUri": "https://<XsquashCloudURL>.com/atlassian-connect.json",
    "pluginName": "Xsquash Cloud"
}
```
and, for the authentication, use the administrator's username and API token.

Declare a Server in Xsquash Cloud

To configure Xsquash Cloud, click on [Parameters] > Marketplace apps. In the menu on the left of your screen, search for "Xsquash", then click on [Configuration]. Xsquash enables you to configure multiple Xsquash4Jira servers from different SquashTM instances:

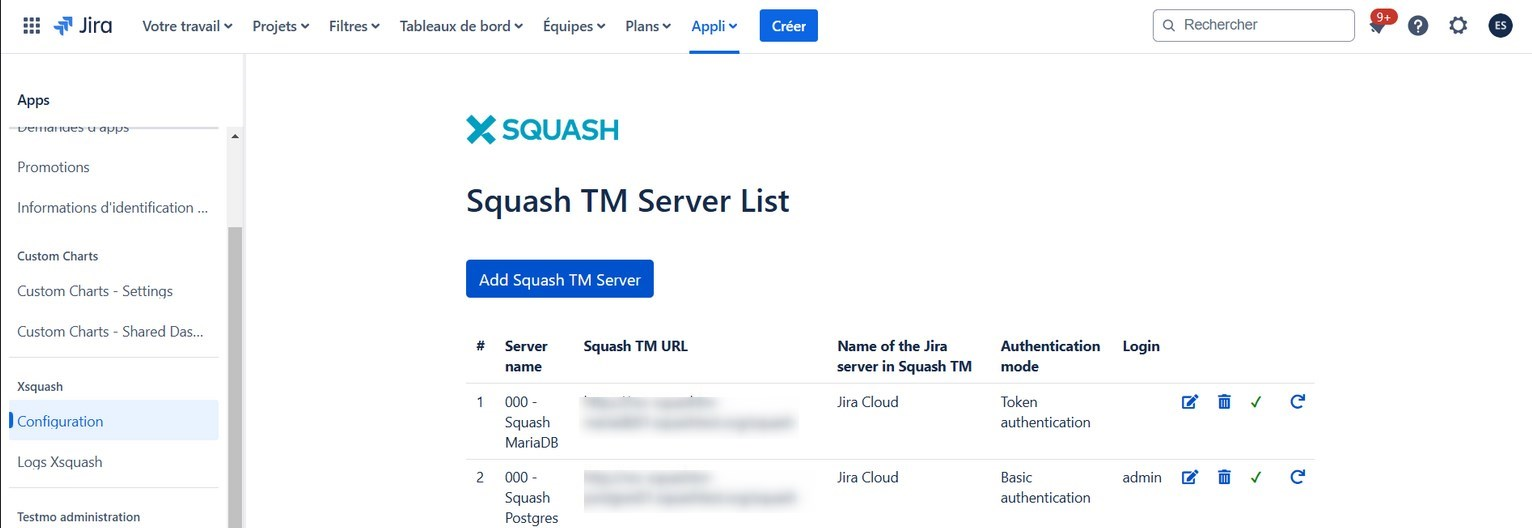

Servers list

Info

A check mark at the end of each server row indicates that the communication between the SquashTM server and Jira Cloud is working.
You can download the logs of the Xsquash Cloud plugin from the "Xsquash Logs" option.

Click on the [Add SquashTM server] button to add a new SquashTM server and fill in the form with the following information:

Server name (unrestricted);
SquashTM's base URL (stop at /squash);
Name of the jira.xsquash server declared in SquashTM corresponding to the Jira instance (case-sensitive);
Depending on the authentication mode, login and password, or API token with read permission of a SquashTM account. This account will be used for all the API requests the plugin will send to SquashTM.

Warning

Basic authentication will no longer be available by 2026, learn more here.

Learn more

For more information about generating API tokens in SquashTM, see Personal API tokens section.

We recommend that you use a SquashTM administrator account for this configuration because this one has access to all the projects on the instance. However, you can still use a guest profile with only reading permissions for projects containing acceptance data (test cases and executions) to be synchronized in Jira.

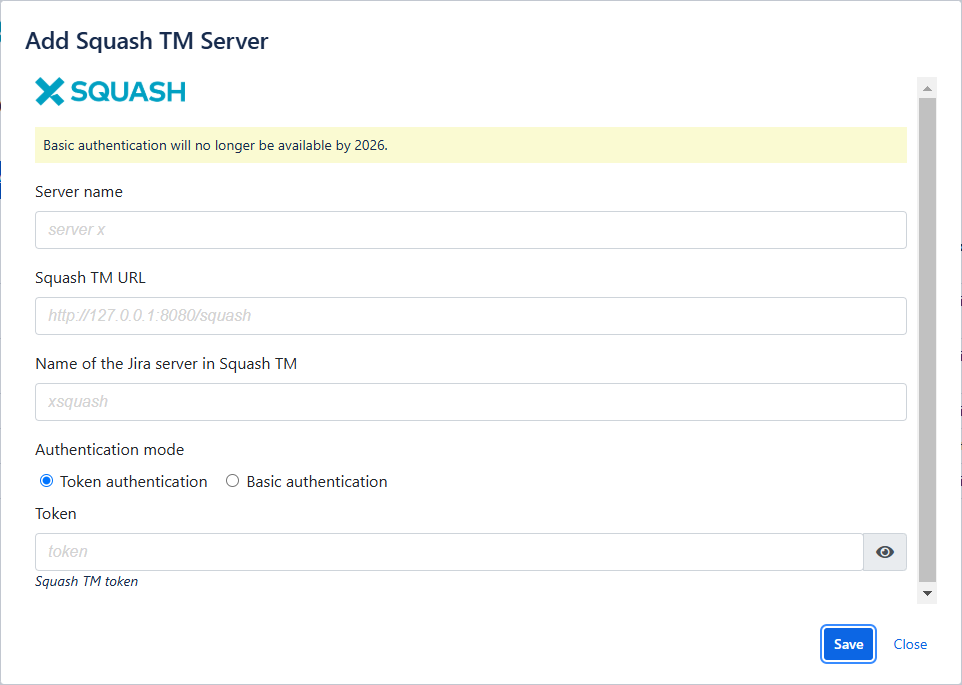

Add Server

Configure Xsquash Cloud for a Project

You have to configure the Xsquash Cloud plugin independently for each project.

To configure Xsquash Cloud for a project, go to Project parameters, then click on Configure Xsquash in the vertical menu. Activate Xsquash via the radio button, then select the server you want in the list.

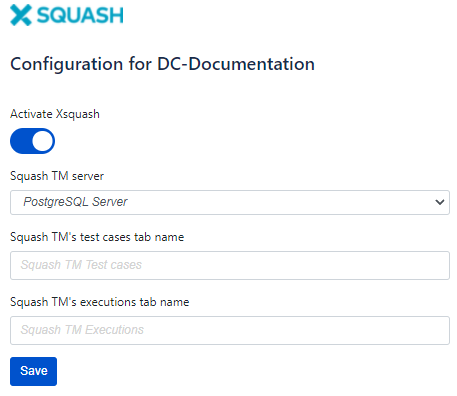

Activate Server

By default, the synchronization tabs of the SquashTM acceptance data are named SquashTM test cases and SquashTM executions. The configuration pop-up enables you to rename these tabs that appear in the Jira requests of the project. Once the configuration is done, click on [Save].

Preview of a Jira Request

In Jira Data Center and Jira Cloud, the tabs added by Xsquash appear in the Activity block of the configured project's requests.
See the Follow testing activity in Jira page for more information.
