Using BDD and Robot Framework in SquashTM - Project setup

Setup

Annita SquashTM administrator	Pravash Product owner	Fabrice Functional tester	Antonine Automatician
Set up SquashTM
	Write requirements
		Write test cases
		Transmit test cases
			Get test cases
			Automate test cases
			Deliver automated test cases
			Indicate automation is performed
		Run automated tests

Declaration of the public URL

In order to enable the communication between SquashTM and SquashTM Orchestrator, the public URL of the SquashTM instance must be declared.
Annita defines the public URL as described in SquashTM documentation.

SquashTM public URL

Creation of the project in SquashTM

Annita creates the project as described in the SquashTM documentation.

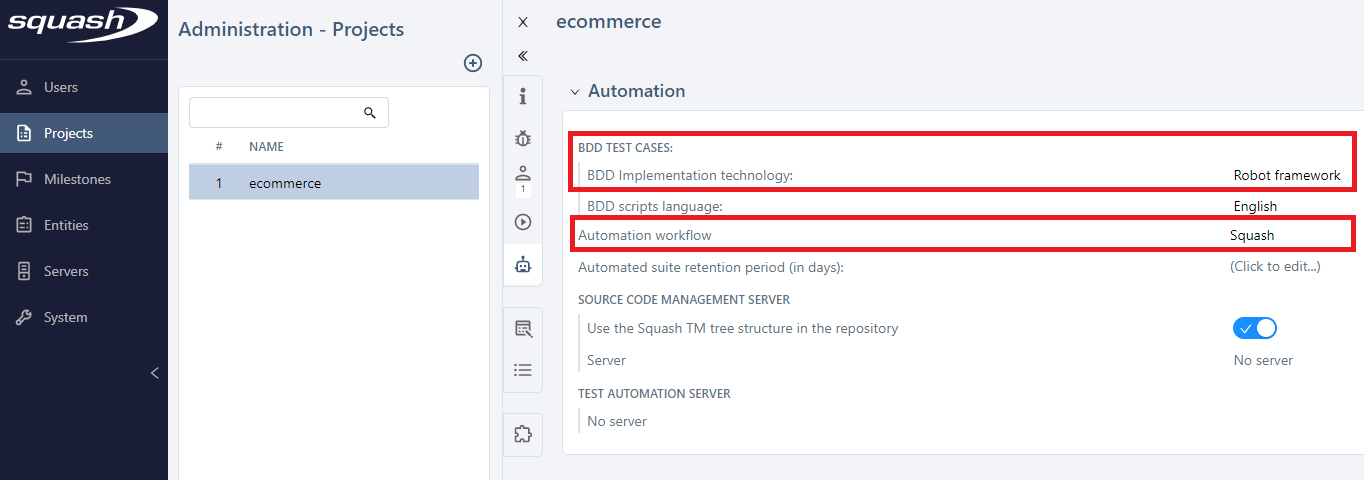

She sets the project as BDD with Robot Framework and the automation workflow as managed by SquashTM:

SquashTM project setup

Declaration of the SquashTM Orchestrator in SquashTM

A SquashTM Orchestrator has been deployed as described in that page.
Annita declares it in SquashTM as described in the documentation so it is available to execute tests from SquashTM. SquashTM project setup

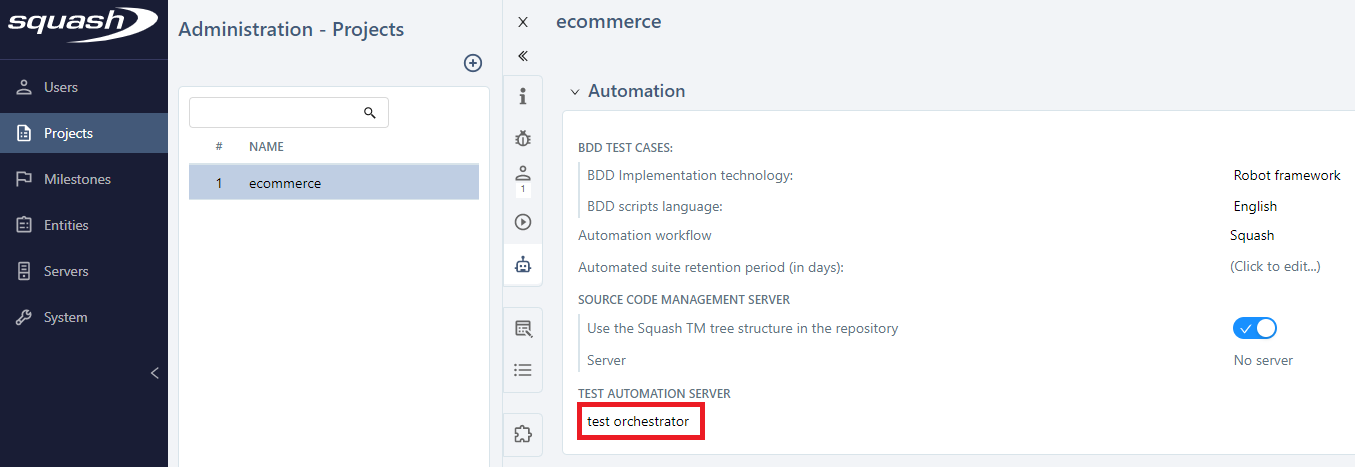

Then, she associates it to the project:

SquashTM project setup

Creation of the Git repository (for the automated tests)

In order to be able to finish the configuration of the project, Annita needs the Git repository information. So she asks Antonine to create the repository and, in it, the directory into which SquashTM will push the automated test cases.

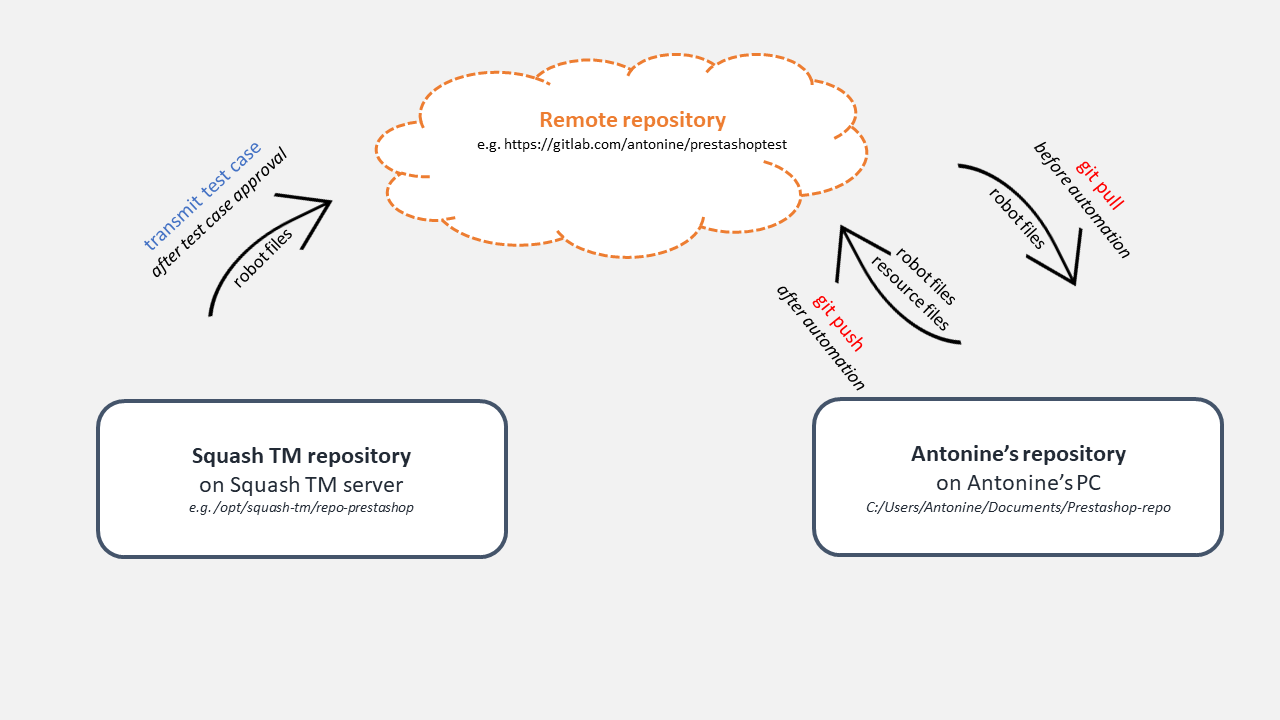

Overview of the involved Git repositories

The remote repository is stored in the cloud. It is the reference.

SquashTM uses a local repository (on the host server) to generate automated scripts before pushing them into the remote repository.
🛑 Nobody must interact with this local repository, it is intended to be used only by SquashTM.

Antonine uses a local repository on her PC. She retrieves the scripts generated by SquashTM by performing a git pull and pushes her automation code with a git push.

SquashTM public URL

Antonine creates, on her PC, a local Git repository with the adequate directory structure:

mkdir repo_prestashop
cd repo_prestashop
mkdir -p tests/bdd_squash
touch tests/bdd_squash/.gitkeep
git init
git add .
git commit -m "project setup"

Then, she creates an empty remote repository in the cloud (it could be in GitLab, GitHub, Bitbucket…, in this case it is https://gitlab.com/antonine/prestashoptest), and pushes her local repository into it:

git remote add origin https://gitlab.com/antonine/prestashoptest
git push --set-upstream origin master

At last, she indicates to Annita the URL of the remote repository is https://gitlab.com/antonine/prestashoptest and that

the generated script files (i.e. the robot files) should be placed in the tests/bdd_squash directory.

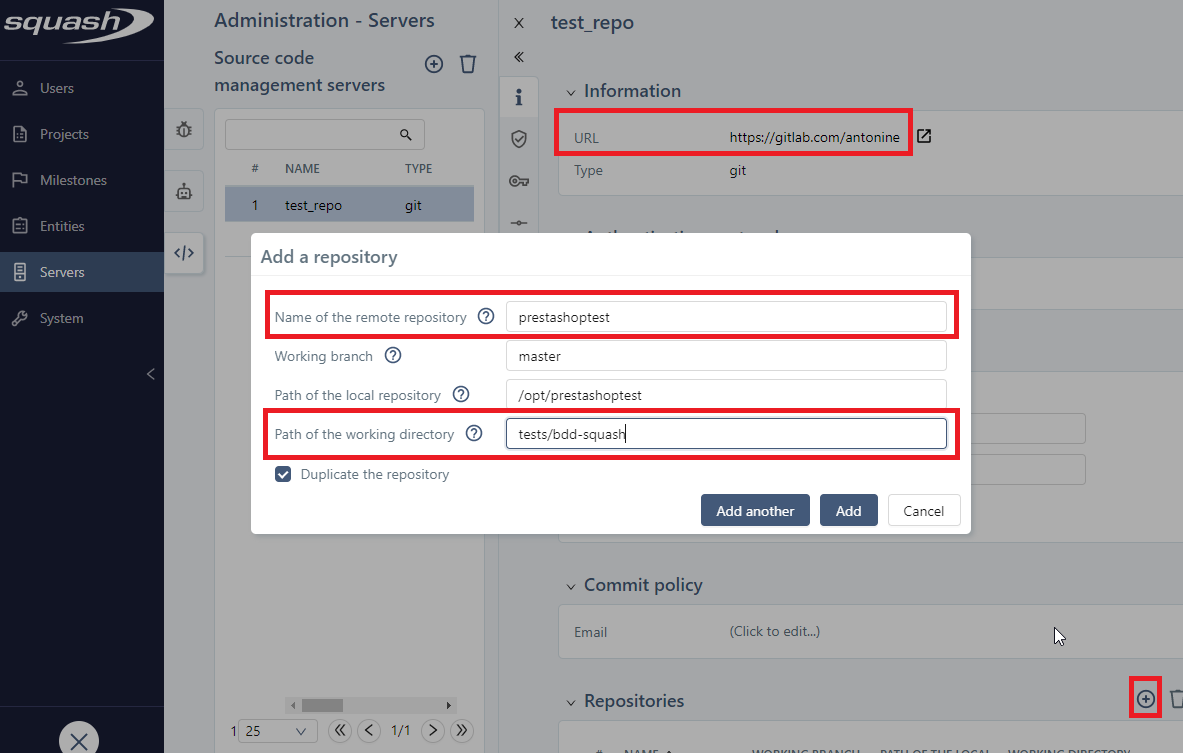

Declaration of the Git repository in SquashTM

Annita declares

the remote repository
the local SquashTM repository

as described in the SquashTM documentation:

Git repo setup

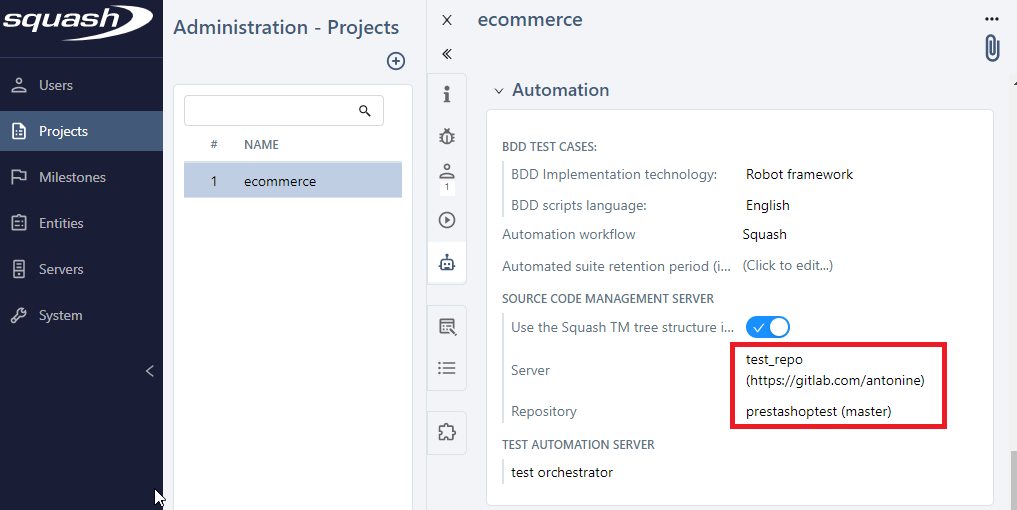

Then, Annita associates the repository to the project:

SquashTM project setup
