Automation with SKF

Test reference in SquashTM

In order to bind a SquashTM test case to a SKF automated test, the content of the Automated test reference field of the Automation block of a test case must have the following format:

[repository]/[ecosystem].[sub_ecosystem]#[script]
or
[repository]/[ecosystem]#[script]
(The reference always contains a single # character.)

with:

  • [repository]: Path to the root SKF folder (which contains the pom.xml file) on the source repository.

  • [ecosystem]: Default test ecosystem of the SKF project (tests).

  • [sub_ecosystem]: Child test ecosystem (it is possible to add several ones by separating them by .).
    This parameter is optional, i.e. it can be absent.

  • [script]: Name of the test script to run (with its .ta extension; this parameter is mandatory)

Nature of the exploitable SquashTM parameters

The exploitable SquashTM parameters will differ depending on whether you're using the Community/Premium or Ultimate version of SquashTM.

Here is a table showing the exploitable parameters (these parameters are transmitted as test parameters, see below, SquashTM does not generate global parameters):

Nature Key Community/Premium Ultimate
Name of the dataset DSNAME ✅ ✅
Dataset parameter DS_[name] ✅ ✅
Execution ID TC_EXECUTION_ID ❌ ✅
Test case reference TC_REFERENCE ✅ ✅
Test case internal UUID TC_UUID ✅ ✅
Test case custom field TC_CUF_[code] ✅ ✅
Iteration custom field IT_CUF_[code] ❌ ✅
Campaign custom field CPG_CUF_[code] ❌ ✅
Test suite custom field TS_CUF_[code] ❌ ✅

Legend:

As indicated, SquashTM adds a prefix to the code of the transmitted custom field. Make sure to take it into account.

Availability of the execution ID

TC_EXECUTION_ID is only available with Squash TM 8.0 or later.

Parameters usage

It is possible, when running SKF tests, to exploit parameters within it. A parameter can be a test parameter or a global parameter. SquashTM transmits only test parameters. Test parameters and global parameters can be used in the case of a launch from a CI/CD pipeline with the skf/params action.

Test parameters are available in SKF as script context parameters.
Global parameters are available as global context parameters.

In order to achieve this, it is necessary to (see the SKF documentation):

  • Call the desired parameters inside the files used by the SKF test by using the ${key} syntax.

  • In the SKF test, use the following command to replace, in a file, the parameter references by the values transmitted at execution:
    CONVERT {resourceToConvert<Res:file>} TO file (param) USING context_global_params, context_script_params AS {converted<Res:file>}

Example

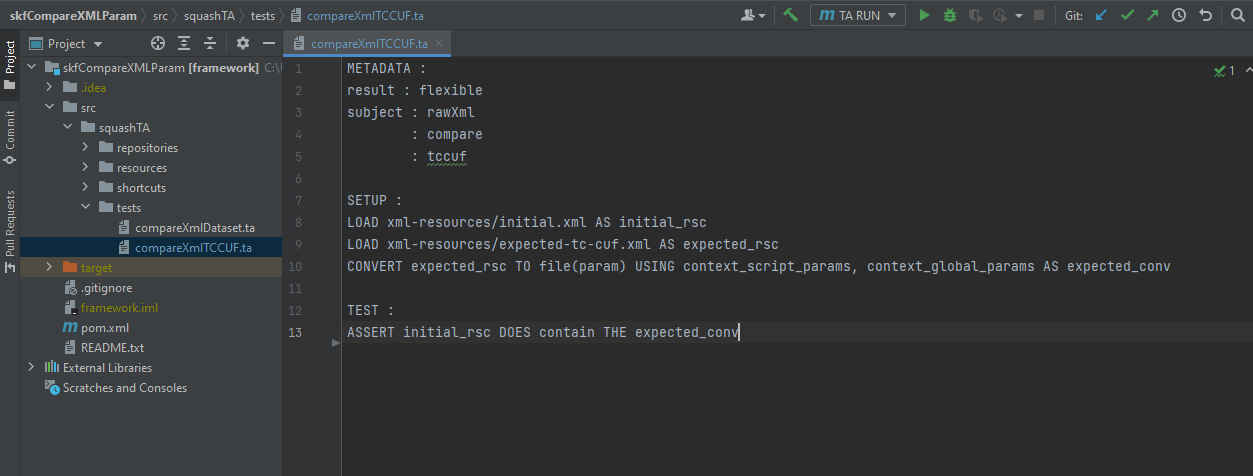

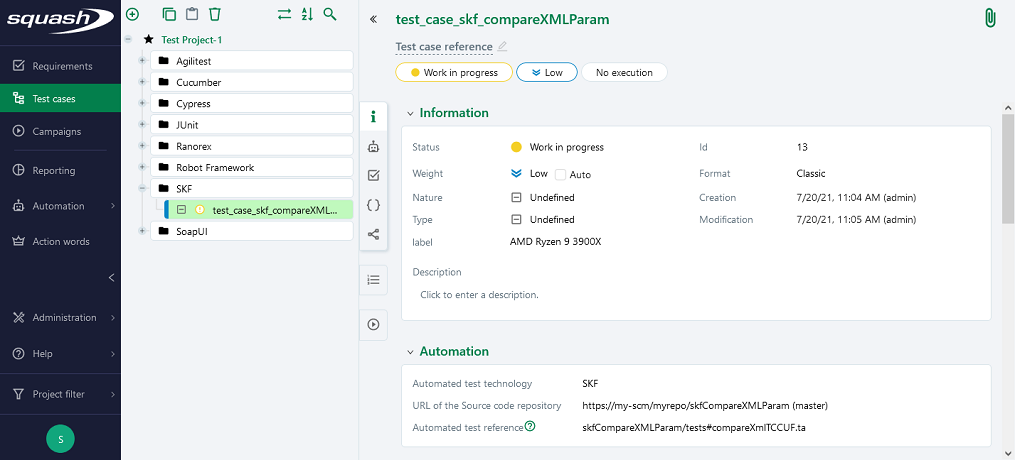

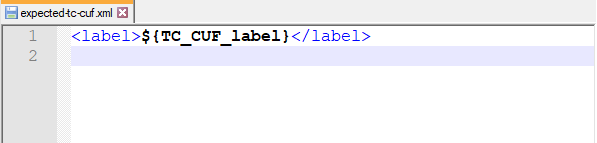

Below is an example of a SKF project using a parameter in a XML file and the corresponding SquashTM test case automation:

SKF example

SKF example

SKF example

Supported versions

SquashTM has been validated with with the following version of SKF.

Testing Technology Version
SKF 1.14.0

Compatibility with Maven 3.8.1 or later

Maven 3.8.1 (or later) blocks repositories accessed through http (see Maven Release Notes). This has the effect of preventing the SoapUI Plugin to access SmartBear's Maven repository.
The solution is to declare the repository as https in your pom.xml file:

<pluginRepository>
    <id>smartbear</id>
    <name>smartbear</name>
    <url>https://rapi.tools.ops.smartbear.io/nexus/content/groups/public</url>
</pluginRepository>
